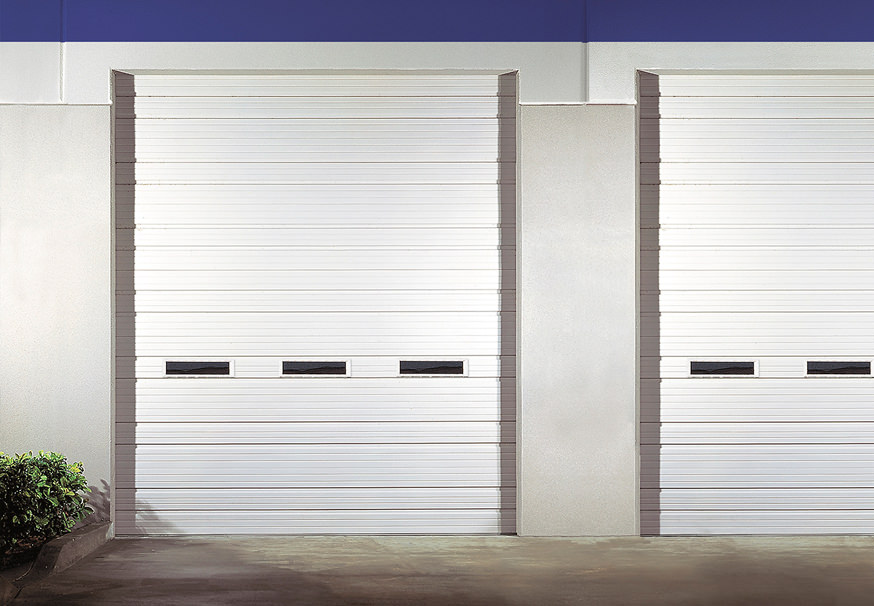

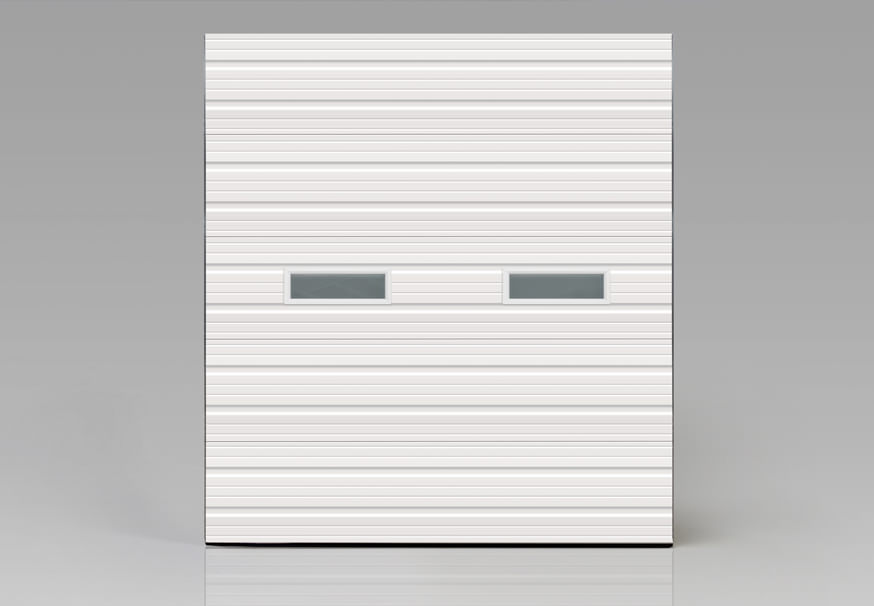

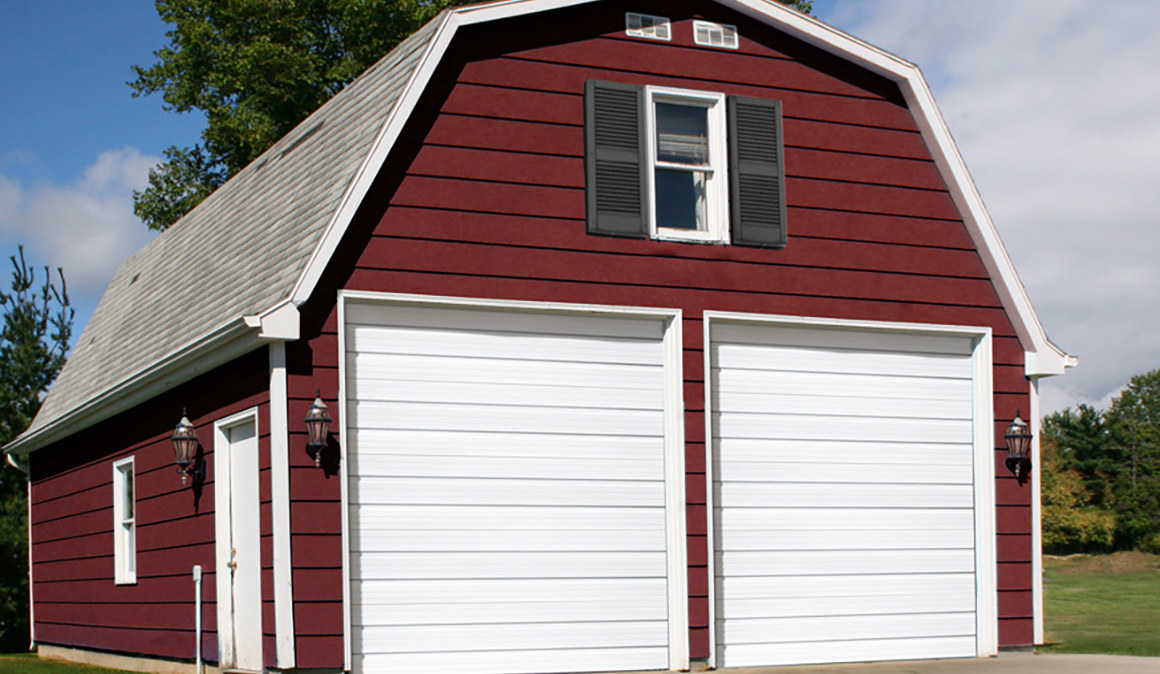

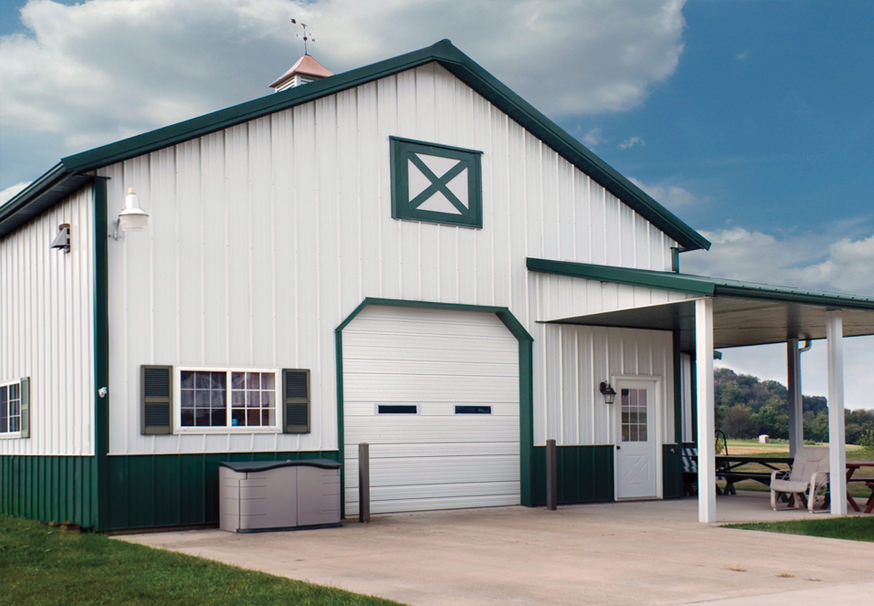

Industrial Series

Premium-duty polyurethane insulated ribbed steel doors

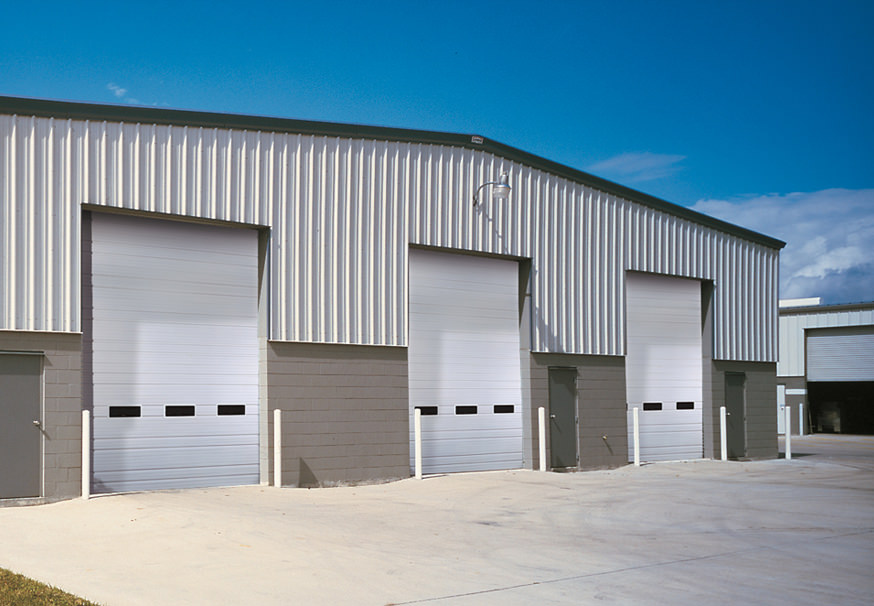

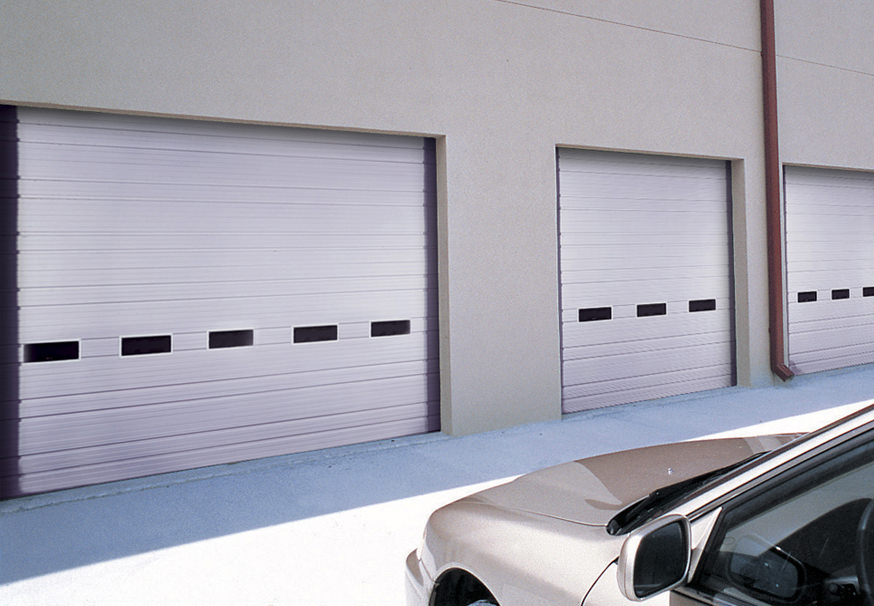

Industrial Series doors feature a variety of standard ribbed, flush and embossed patterns such as stucco and woodgrain. Available in a wide selection of gauges for pro-grade durability, this series is a great choice for high-traffic applications including warehouses, distribution centers and loading docks.
Contact us about this product
DOWNLOAD PRODUCT BROCHURE

by :
Clopay Garage Doors

Model

Section Thickness

Panel Design

Ext. Steel Gauge

Backer

R-value*

Max Width**

Max Height

520

2"

Ribbed Steel

20 Gauge

N/A

N/A

26'2"

20'0"

520S

2"

Minor & Deep Ribs

24 Gauge

Pre-painted 30 gauge steel back cover

6.6

26'2"

20'0"

522

2"

Flush

20 Gauge

N/A

6.6**

24'2"

24'0"

522S

2"

Flush

24 Gauge

N/A

6.6**

24'2"

24'0"

524

2"

Ribbed Steel

24 Gauge

N/A

N/A

24'2"

20'0"

524V

2"

Minor & Deep Ribs

24 Gauge

Polyethylene vinyl back cover

6.6

26'2"

20'0"

524S

2"

Minor & Deep Ribs

24 Gauge

Pre-painted 30 gauge steel back cover

6.6

24'2"

20'0"

525

2"

Ribbed Steel

25 Gauge

N/A

N/A

26'2"

16'0"

525V

2"

Minor & Deep Ribs

25 Gauge

Polyethylene vinyl back cover

6.6

26'2"

16'0"

525S

2"

Minor & Deep Ribs

25 Gauge

Pre-painted 30 gauge steel back cover

6.6

20'2"

16'0"

664

2 1/8"

Raised Panel Steel

24 Gauge

N/A

N/A

20'2"

16'0"

664V

2 1/8"

Raised Panel

24 Gauge

Polyethylene vinyl back cover

6.3

20'2"

16'0"



*Calculated door section R-value is in accordance with DASMA TDS-163

Insulated and Non-insulated doors come with a variety of options to address your building requirements. Options below are not available on all models. See model specific literature or consult a Clopay commercial dealer for option availability.

DESIGN OPTIONS:

  • Windows
  • 24"x6"
  • 24"x12"
  • Full View (pre-painted white or brown or clear anodized)
  • Black frame Window with Rounded Corners

COLORS:

  • White - All Models
  • Brown - All Models
  • Tan - 524, 524S, 524V
  • Gray - 524, 524S, 524V
  • Trinar White - 524, 524V, 525S
  • Desert Tan - 664, 664V
  • Hunter Green - 664, 664V
  • Sandtone - 664, 664V
  • Almond - 664, 664V

PERFORMANCE OPTIONS:



  • High Cycle Springs (25K, 50K and 100K available)
  • 3" heavy duty track (where not standard)
  • Outside keyed Security Lock
  • Double End Stiles
  • Design pressure rated (WindCode)
  • Impact Rated
  • Photo eyes, sensing edges and Operators
  • Sustainable Door Upgrade
  • Header (top) and Jamb Seals

CUSTOM OPTIONS:

  • Mullions
  • Breakaway Sections
  • Pass Door

MODEL - 520/524/525

Panel Design: 2" thick roll formed ribbed steel



Steel Gauge: 20 ga (.034" min) - Model 520, 24 ga (.022" min) - Model 524and 25 ga (.019 min) - Model 525 ribbed steel sections
Joint Design: Tongue and groove
Thickness/Insulation: No insulation
Hardware: 14 gauge hinges, commerical 10-ball steel rollers, 10,000 cycle torsion springs
Colors: Pre-painted white or brown (520/525)
Pre-painted white, brown, tan or gray (524)
Limited Warranty: 10-year finish against rust / one-year material & workmanship



MODEL 520S

features_520S
Panel Design: 2" thick roll formed stucco embossed ribbed steel
Steel Gauge: 20 gauge (.034" min) for maximum dent resistance
Joint Design: Tongue and groove
Thickness /Insulation 1-3/8" thick polystyrene insulation with pre-painted 30 gauge steel backcover
Thermal Conductivity R-Value 6.6*
Paint System: 3-stage paint process delivers maintenance free finish that resists rust perforation
Colors Pre-painted white or brown
Limited Warranty: 10-year paint / one-year material & workmanship

MODEL 524V / 524S

features_524V-524S
Panel Design: 2" thick roll formed stucco embossed steel
Steel Gauge: 24 gauge (.022" min) ribbed steel sections
Joint Design: Tongue and groove
Thickness /Insulation

1-3/8" thick polystyrene insulation with polyethylene vinyl backcover (524V)

1-3/8" thick polystyrene insulation with pre-painted 30 gauge steel backcover (524S)

Thermal Conductivity R-Value 6.6*
Paint System: 3-stage paint process delivers maintenance free finish that resists rust perforation
Colors Pre-painted white, brown, tan or gray
Limited Warranty: 10-year paint /one-year material & workmanship

MODEL 525V / 525S

features_525V-525S
Panel Design: 2" thick roll formed smooth steel with combination of deep minor ribs
Steel Gauge: 25 gauge (.019" min)
Joint Design: Tongue and groove
Thickness /Insulation

1-3/8" thick polystyrene insulation with polyethylene vinyl backcover (525V)

1-3/8" thick polystyrene insulation with pre-painted 30 gauge steel backcover (525S)

Thermal Conductivity: R-Value 6.6*
Paint System: 3-stage paint process delivers maintenance free finish that resists rust perforation
Colors: Pre-painted white or brown
Limited Warranty: 10-year paint / one-year material & workmanship

MODEL - 664

Panel Design: 1 7/8" thick roll formed steel
Steel Gauge: 24 gauge (.22" min) raised panel door
Joint Design: Tongue and groove
Thickness & Insulation No insulation
Hardware: 14 gauge hinges, commerical 10-ball steel rollers, 10,000 cycle torsion springs
Colors: Pre-painted snowmist white, chocolate, brown, almond, sandstone, or desert tan.
Limited Warranty: 10-year finish against rust through / one-year material & workmanship



MODEL 664V

Panel Design: 1-7/8" thick woodgrain embossed raised panel steel
Steel Gauge: 24 gauge (.022" min) ribbed steel sections
Joint Design: Tongue-and-groove
Thickness /Insulation 1-3/8" thick polystyrene insulation with polyethylene vinyl backcover
Thermal Conductivity R-Value 6.3*
Paint System 3-stage paint process delivers maintenance free finish that resists rust perforation
Colors Pre-painted white, brown, tan or gray; Trinar white or beige
Limited Warranty: 10-year paint / one-year material & workmanship

COMMERCIAL HARDWARE

Commercial doors are designed with hardware to meet demanding applications of commercial building usage. All commercial doors are provided with the following hardware as standard. For additional upgraded hardware see “Options” tab.

  • 14 gauge hinges
  • Commercial 10 ball steel rollers with options for nylon tire rollers
  • 10,000 cycle torsion springs
  • Steel step plate and lift handle for easy operation
  • Inside slide lock for increase security
  • 19 gauge steel hinge support plates
  • 18-gauge single end stiles; 16-gauge double end stiles
  • Galvanized aircraft cables with 7:1 safety factory
  • 2” or 3” track in a variety of configurations to meet building design requirements

COMMERCIAL TRACK APPLICATIONS

In commercial settings, space utilization and space constraints are important factors in choosing the correct hardware configuration for your application. Clopay track offerings and options enable you to make the most efficient use of available space. Options include standard lift, low head room front or rear mount, follow the roof pitch, full vertical or combination of these options.  Learn more

COMMERCIAL TORSION SPRINGS

Designed to counterbalance even the largest doors, commercial torsion spring assemblies can be designed for Industry standard 10,000 cycles or can be upgraded to 25,000, 50,000 or 100,000 expected life cycles. . Click here for details
