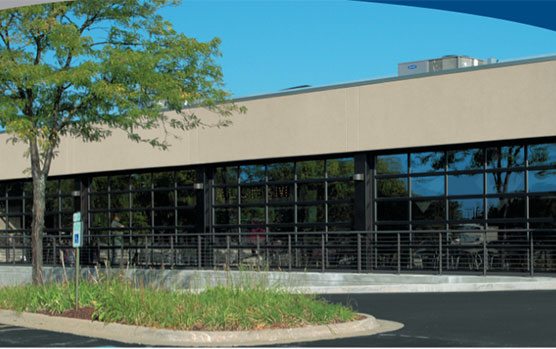

Designed for peak performance and strength, this 2" thick aluminum garage door is available in larger sizes and features bold rail construction for maximum durability, reliability and beauty.
Contact us about this product

Every AlumaView AV200 door is built for superior performance and includes the features listed below.

Door sections are clear-anodized for maximum durability and are designed to withstand minimum wind loads of 20 p.s.f. Higher pressure ratings are available upon request.


AlumaView doors help you reduce energy costs with a U-shaped, vinyl bottom weatherseal secured by a sturdy aluminum retainer.


AlumaView AV200 & AV175 panels and glass are sealed and held in place with a snap-in retainer.


Your AlumaView garage door comes packaged with the right combination of hardware, track and springs to match your door's size and application.

Type   Commercial Sectional Garage Doors
Model   AlumaView AV200
Size   24' x 24' Max
Operation   Manual, Motor or Hand Chain
IECC Thermal Performance   Tested Air Infiltration @ 25 mph 0.24 cfm/ft2
Construction   Rail & Stile - minimum .05"; 5/16" diameter screws
Material   Aluminum
Surface Texture   Smooth
Section Joint   Tongue-Groove
Section Thickness   2"
Gauge   N/A
Stiles   Extruded aluminum - minimum .05"
Insulation   3/8" Expanded Polystyrene (in panels only)
Seals   Bottom Seal (3", 4" Gray; 3" Yellow; or 3" Black EPDM), Optional Header Seal. Optional IECC and California Title 24 air filtration compliant package available.
Trussing   Wind Load: 20 P.S.F. Tested/13.3 P.S.F. Design Load (standard); Material: U-bar (18-Gauge or 20-Gauge);Sizes: 4", 6", or 8"
Panel Configuration   .50" thick Aluminum panels
Color   Clear Anodized or Optional ArmorBrite Powder-Coat 187 custom colors available, or Bronze Anodized, Black Anodized
Windows   1/8" DSB Glass; 1/8" 1/4" 3/16" Clear Tempered Glass; 1/8" 1/4" Tinted or Tinted Tempered Glass; 3/16" 1/4" Clear Glass; 1/4" Clear Laminated Glass; 1/4" Clear Wire Glass; 1/2" Insulated DSB Glass
Type   Normal Headroom, Rear Mount Low Headroom, Front Mount Low Headroom, Lift Clearance, Vertical Lift, Incline, Contour
Finish   Galvanized or Optional White Powdercoat
Size   2" or 3"
Gauge   13 and 16-gauge
Counterbalance System
Type   Torsion Spring, Tandem Shaft Torsion Spring, or Weight Counter-Balance
Springs   Spring Inner Diameter: 2-1/4", 3-1/2" or 5-1/2"; Duplex or High Cycle (30K, 50K, 100K); Optional Black Powdercoat
Shafts   Tube or Solid (D-Shaft, 1" Keyed, 1-1/4" Keyed)
Hinges   11, 13, 14-Gauge or Hybrid
Rollers   Standard (2" or 3") or Heavy Duty (2" or 3")
Finish   Galvanized or Optional White Powdercoat
Lock   Interior Slide Lock or Exterior Lock Bars
Seal   Jamb Seal
Hanger Angle   11, 13-Gauge Galvanized or 13-Gauge White Powdercoated
Pedestrian Door   32" Wide x 3 Sections High
Optional Wind Loading   Certified Wind Load Available
Posts   Swing-Up or Carry-Away
Limited Warranty *
Section Warranty   5-Year
Hardware Warranty   1-Year
Spring Warranty   1-year
Anodizing: Clear Anodized, Bronze Anodized, Black Anodized
Custom Colors: ArmorBrite: 187 Custom Powdercoated colors available
Track Selection Guide
Normal Headroom
Normal Headroom
Lift Clearance
Lift Clearance
Low Headroom (Front Mount)
Low Headroom (Front Mount)
Low Headroom (Rear Mount)
Low Headroom (Rear Mount)
Vertical Lift
Vertical Lift
Vertical Lift A-Type


Section and Panel Schedules
 Door Width  Number of Panels    Door Height  Number of Sections
Up to 9'2" 2 Up to 8'2" 4
9' 3" - 12' 2" 3 8' 3" - 10' 6" 5
12' 3" - 16' 2" 4 10' 7" - 12' 6" 6
16' 3" - 20' 2" 5 12' 7" - 14' 6" 7
20' 3" - 24' 2" 6 14' 7" - 16' 6" 8
AlumaView Warranty

Door Sections

Raynor® warrants the door sections against defects in material and workmanship for five (5) years from date of delivery to the original purchaser. Window components are warranted against defects in material and workmanship for three (3) years from date of delivery to the original purchaser.

Hardware and Springs

Raynor warrants all hardware and spring components against defects in material and workmanship for one (1) year from date of delivery to the original purchaser.


Doors equipped with AmorBrite powdercoat carry a warranty against cracking or peeling (losing adhesion) for three (3) years from date of delivery to the original purchaser.


Under the terms of this limited warranty, for any door components that are found to be defective upon inspection by authorized Raynor personnel, Raynor will, at its option, repair or replace the defective door components. Labor charges for the installation or repairs shall be the responsibility of the consumer and must be performed by an authorized Raynor dealer.

This warranty extends only to the original purchaser, provided the door is installed in his/her place of business. This warranty is not transferable.

This warranty does not apply to any damage or deterioration to the door caused by abuse, negligence, missing components, accidents, use of pressure washers, dents or scratches. Shavings from trolley rails not properly removed and cleaned from the exterior door surface causing rust are not covered by this warranty. Failure to provide proper maintenance voids this warranty. Field applied paint failure is not covered by this warranty. Refer to the Care and Maintenance Instructions and Painting Instructions.

This warranty does not apply to damage caused by fire, an act of God, accident, vandalism or graffiti. Damage or deterioration caused by saltwater coastal areas (within two miles), hazardous or corrosive chemicals and fumes including, but not limited to, alkaline, acids, muriatic acids, road salt or salt environments, harsh cleaning agents, and fertilizers is not covered by this warranty.

Raynor shall not be liable for any consequential or incidental damages.


Some states do not allow the exclusion or limitation of consequential or incidental damages, so the above limitation or exclusion may not apply to you.

Claims for defects in material and workmanship covered by this warranty shall be made in writing with proof of purchase and photographs of the product in question to the dealer from whom the product was purchased or call Raynor at 1-800-4-RAYNOR within the warranty period. Raynor may choose to have the product returned for inspection.

This warranty gives you specific legal rights. You may also have other rights, which may vary from state to state.
