S-20 & S-24

Features

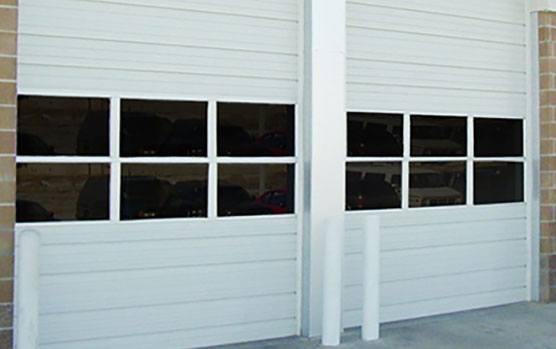

SteelForm S-20 and S-24 steel garage doors provide proven reliability and durability to meet or exceed the requirements of daily use. These 20 and 24-gauge doors are offered with the widest selection of quality features and options for the most common product applications, such as a busy loading dock.
Contact us about this product
DOWNLOAD PRODUCT BROCHURE
Door
Type   Commercial Sectional Garage Doors
Model   SteelForm S-20 AND S-24
Size   40' x 32' Max (20-Gauge) or 32' x 32' Max (24-Gauge)
Operation   Manual, Motor or Hand Chain
IECC Thermal Performance   N/A
Sections
Construction   1 or 2-Layer Pan
Material   Steel
Surface Texture   Smooth Ribbed Exterior
Section Joint   Tongue-Groove
Section Thickness   2"
Gauge   Steel; Exterior: 20-Gauge (White Only) or 24-Gauge (All Colors)
Stiles   End Stiles: 13 or 16-Gauge (depending on door width); Center Stiles: 16-Gauge
Insulation   Optional Expanded Polystyrene (R-value = 7.7) with 26 or 24-Gauge Steel Covers
Seals   Bottom Seal (3", 4" EPDM, or 3" Yellow); Optional Header Seal
Trussing   Wind Load: 20 P.S.F. Tested/13.3 P.S.F. Design Load (standard); Material: U-bar (18-Gauge or 20-Gauge); Sizes: 4", 6", or 8"
Panel Configuration   NA
Color   White, Frost White (Kynar), Dark Brown (Kynar), Sepia (Kynar), Beige (Kynar)
Windows   24" x 8" or Full View Section; Glass: Choose from a variety of standard or insulated glass, acrylic and polycarbonate styles to suit any application
Track
Type   Normal Headroom, Rear Mount Low Headroom, Front Mount Low Headroom, Lift Clearance, Vertical Lift, Incline, Contour
Finish   Galvanized or Optional White Powdercoat
Size   2" or 3"
Gauge   12, 13, 16-gauge
Counterbalance System
Type   Torsion Spring, Tandem Shaft Torsion Spring, or Weight Counter-Balance
Springs   Spring Inner Diameter: 2-1/4", 3-1/2" or 5-1/2"; Duplex or High Cycle (30K, 50K, 100K); Optional Black Powdercoat
Shafts   Tube (13 gauge) or Solid (D-Shaft, 1" Keyed, 1-1/4" Keyed)
Hardware/Accessories
Hinges   11, 13, 14-Gauge or Hybrid
Rollers   Standard (2" or 3") or Heavy Duty (2" or 3")
Finish   Galvanized
Lock   Interior Slide Lock or Exterior Lock Bars
Seal   Climate Seal
Hanger Angle   11, 13, 16-Gauge Galvanized or 13-Gauge White Powdercoated
Pedestrian Door   32" Wide x 3 Sections High
Optional Wind Loading   Certified Wind Load Available
Posts   Swing-Up or Carry-Away
Limited Warranty *
Section Warranty   10 Year (Rust-Through)
Hardware Warranty   1-Year
Spring Warranty   1-year or Cycle Life



SteelForm S-24 steel garage doors feature the Kynar paint process, provides extended UV protection against fading.

White, Frost White (Kynar), Dark Brown (Kynar), Sepia (Kynar), Beige (Kynar)
(S-20 available in white only)

Specifications Word Document PDF document
S20 Raynor Quick Spec Microsoft Word Document PDF Document
S24 Raynor Quick Spec Microsoft Word Document PDF Document

S20 CSI Master Format Microsoft Word Document PDF Document
S24 CSI Master Format Microsoft Word Document PDF Document



Track Selection Guide
Normal Headroom
Normal Headroom
Lift Clearance
Lift Clearance
Low Headroom (Front Mount)
Low Headroom (Front Mount)
Low Headroom (Rear Mount)
Low Headroom (Rear Mount)
Vertical Lift
Vertical Lift
Incline
Incline
Contour
Vertical Lift A-Type




Section and Panel Schedules
 Door Width  Number of Raised Panels    Door Height  Number of Sections
Up to 9' 2" 2 Up to 8' 2" 4
9' 3" - 12' 2" 3 8' 3" - 10' 2" 5
12' 3" - 16' 2" 4 10' 3" - 12' 2" 6
16' 3" - 20' 2" 5 12' 3" - 14' 2" 7
20' 3" - 24' 2" 6 14' 3" - 16' 1" 8
SteelForm "S" Series Warranty

DOOR SECTIONS

Raynor® warrants the door sections against defects in material and workmanship, and deterioration due to rust-through for ten (10) years from date of delivery to the original purchaser. Window components are warranted against defects in material and workmanship for one (1) year from date of delivery to the original purchaser.

HARDWARE and SPRINGS

Raynor warrants all hardware and spring components against defects in material and workmanship for one (1) year from date of delivery to the original purchaser.

ARMORBRITE™

Doors equipped with AmorBrite powdercoat carry a warranty against cracking or peeling (losing adhesion) for three (3) years from date of delivery to the original purchaser.

OPTIFINISH™ (post paint)

Raynor warrants the OptiFinish (exterior only) against cracking or peeling (losing adhesion) for one (1) year from date of delivery to the original purchaser. Cracking or peeling caused by dents or scratches is not covered. Fading is not covered by this warranty.

WARRANTY LIMITATIONS and EXCLUSIONS

Under the terms of this limited warranty, for any door components that are found to be defective upon inspection by authorized Raynor personnel, Raynor will, at its option, repair or replace the defective door components. Labor charges for the installation or repairs shall be the responsibility of the consumer and must be performed by an authorized Raynor dealer.

This warranty extends only to the original purchaser, provided the door is installed in his/her place of business. This warranty is not transferable.

This warranty does not apply to any damage or deterioration to the door caused by abuse, negligence, missing components, accidents, use of pressure washers, dents or scratches. Shavings from trolley rails not properly removed and cleaned from the exterior door surface causing rust are not covered by this warranty. Failure to provide proper maintenance voids this warranty. Field applied paint failure is not covered by this warranty. Refer to the Care and Maintenance Instructions and Painting Instructions.

This warranty does not apply to damage caused by fire, an act of God, accident, vandalism or graffiti. Damage or deterioration caused by saltwater coastal areas (within two miles), hazardous or corrosive chemicals and fumes including, but not limited to, alkaline, acids, muriatic acids, road salt or salt environments, harsh cleaning agents, and fertilizers is not covered by this warranty.

Raynor shall not be liable for any consequential or incidental damages.

ALL OTHER WARRANTIES, EXPRESSED OR IMPLIED, INCLUDING ANY WARRANT OF MERCHANTABILITY, ARE HEREBY EXPRESSLY EXCLUDED.

Some states do not allow the exclusion or limitation of consequential or incidental damages, so the above limitation or exclusion may not apply to you.

Claims for defects in material and workmanship covered by this warranty shall be made in writing with proof of purchase and photographs of the product in question to the dealer from whom the product was purchased or call Raynor at 1-800-4-RAYNOR within the warranty period. Raynor may choose to have the product returned for inspection.

This warranty gives you specific legal rights. You may also have other rights, which may vary from state to state.
