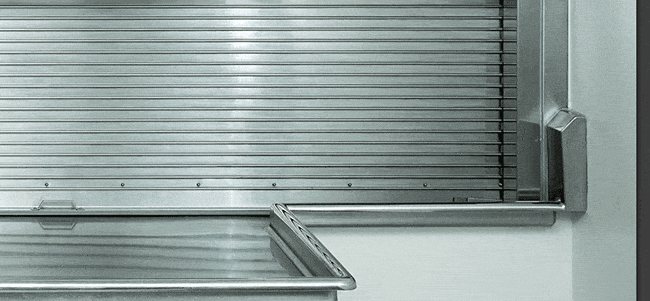

Integral Frame Fire Counter Shutter Model 570

Protection, Quality, and Convenience

Openings up to 9’x 4’ Warnock-Hersey up to 3-hour rating UL 1 ½ hour Class B label Primed steel or stainless steel Easy installation
Contact us about this product
DOWNLOAD PRODUCT BROCHURE
  • UL Listed brush-type smoke seal
  • Photoelectric or ionization-type smoke detectors
  • Locking mechanisms: Cylinder locking bottom bar with mortise cylinders

The Integral Frame Fire Counter Shutters provide an attractive appearance for a variety of applications, including food service counters. Available for opening sizes up to 9’ x 4’ (2743 mm x 1219 mm), these doors carry a UL 11⁄2-hour Class B label and are factory assembled as a complete unit with fully welded frames. The frame comprises 16-gauge jambs and header, and is complemented by a 14-gauge sill, plus hood and fascia. The curtain is made of interlocking 22-gauge stainless steel or 22-gauge galvanized steel slats with endlocks.

Easy Installation

Our Integral Frame Rolling Counter Shutters arrive on the job site ready to install. These doors offer the precision assembly of a factory-welded unit, providing the utmost in convenience and quality in a complete line of rolling counter doors. These shutters are mounted in between the jambs, and are installed as the wall is built. As an option, the shutter is available as a built-in unit for an existing opening. Standard operation is manual push-up and crank operation is available as an option.
