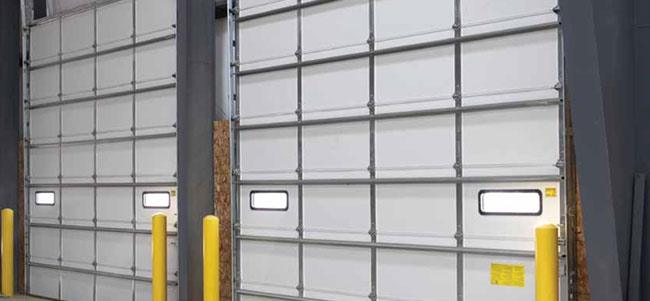

Solid Steel Doors for Moderate to Heavy-Duty Commercial Applications

A commercial sectional steel door for moderate to heavy-duty commercial and industrial applications, Wayne Dalton’s Model 2415 is available in a wide variety of sizes and configurations.
Contact us about this product
DOWNLOAD PRODUCT BROCHURE

This door features 24-gauge ribbed steel sections and heavy-duty 16-gauge vertical end stiles for increased strength. The C-shaped stiles, have pre-located, extruded holes for quick, secure mounting of hinges. Model 2415 offers a ribbed exterior skin that also helps to increase strength while enhancing the buildings visual appearance. The exterior ribbing consists of two deep and two shallow ribs in each section and the bottom section features a vinyl bulb-shaped astragal. Optional insulation consists of 1-5/16" expanded polystyrene which provides an R-value* of up to 7.64 and a U-value as low as 0.13.

*Wayne Dalton uses a calculated door section R-value for insulated doors.

Key Product Features

  • Max Width: 32’2”
  • Max Height: 22’1”
  • 24-gauge steel
  • Optional polystyrene insulation, R-value* = 7.64
  • 10,000 cycle standard spring
  • Shiplap joint profile

*Wayne Dalton uses a calculated door section R-value for insulated doors.

Lite Options

  • Insulated Vision lites allow for visibility while maintaining security. Full-view sections allow for maximum natural light and visibility.

Options & Accessories

  • Chain hoist operation
  • Motor operation
  • High cycle springs (25k, 50k, 100k)
  • 3” track
  • Perimeter weather seal
  • Sensing edges
  • Photo eyes
  • Special track designs
  • Mullions

Simple Install System

This option is a time-saving, easy-to-install track and hardware system, perfect for warehouse applications.

  • Components include: one-piece vertical lift track and simplified hardware
  • Available only for nominal and 24-gauge commercial sectional steel doors
  • Maximum size is 10’2” x 10’1” with a vertical lift track only
  • Requires a 10-door minimum order offers a price deduction

Color Options

Additional Information
