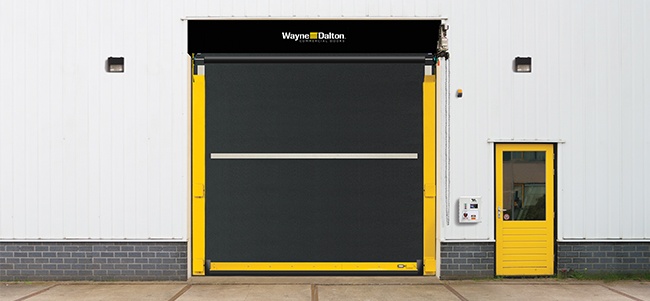

Extreme High Speed Rubber Door

Our Model 885 ADV-X high speed rubber door is made with special reinforced rubber, making it our toughest door in the ADV-X series. The Model 885 ADV-X is perfect for large exterior openings or applications with multiple cycles per day.
Contact us about this product
  • Max Width: 30’
  • Max Height: 30’
  • Exterior applications
  • Material: 5 layers of NBR rubber with 4 layers of polyester weave
  • Wind resistance up to ±27 psf; operational pressure up to ±5 psf
  • Opening speed: up to 50” per second
  • Closing speed: up to 40” per second
  • Breakaway self-reset
  • Operator: direct-drive motor and gearbox system
  • Control: variable frequency drive
  • Wireless reversing edge
  • Plug and play wiring

Design Features

High Cycle Design

  • Springless design requires minimal interruption for maintenance
  • Direct-mounted gear drive minimizes wear and tear
  • Variable frequency drive eliminates sudden jolts from door start/stop

Tough Construction

  • Multi-reinforced rubber provides added strength without the weight

Exterior Environments

  • Ideal for harsh exterior conditions with an operational wind load up to 5 PSF at 20 ft. wide
  • Nitrile butadiene rubber provides resistance to petrochemicals

Low Maintenance

  • Breakaway design with impact detection and push button self repair; plug and play wiring

Applications

  • Manufacturing / Heavy Manufacturing
  • Warehouse / Distribution
  • Mining
  • Auto and Transit
  • Parking Garages
  • Large Openings
  • Rubber

Standard color for guides, brackets, struts and bottom bar is yellow.

RAL Powder Coat

Approximately 200 optional RAL powder coat colors are available for guides, brackets, struts and bottom bar.
custom color garage doors

Online color swatches are only digital reproductions of actual standards and will vary in appearance due to differences in monitor and video card output. These digital representations should not be used to finalize color selection(s).

  • 20" high windows spaced evenly across the width of the door
  • Power availability: 230V AC 3PH, 460V AC 3PH, 575V AC 3PH
  • Multiple actuation options - push button, motion detector, radio control, key switch, pull switch, loop detector, treadle switch
  • Signaling devices - red/green LED warning light, horn/strobe combination, rotating warning light
