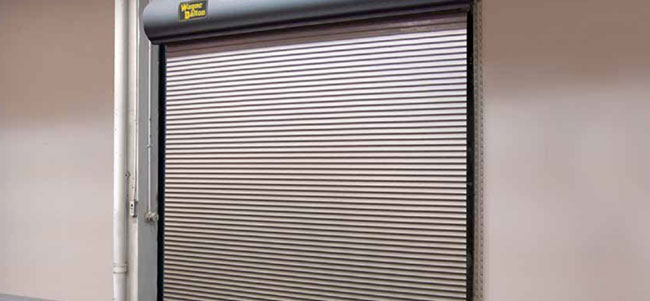

Rolling Service Door Model 926

Key Product Features

Model 926 rolling service door is an economical, secure solution to protect facility openings. These doors are composed of flat-faced slats that provide a natural watershed, helping to reduce corrosion. Slats are designed with free-acting interlocking joints that permit easy articulation when the door coils.
Contact us about this product
DOWNLOAD PRODUCT BROCHURE

Model 926 features a strong double-angle bottom bar that reinforces the lower edge of the curtain against wind pressure and permits varied lock, astragal and safety edge options. It is designed for easy installation and does not require fasteners in the guide openings, so the bottom bar does not interfere with door operation. Zinc-plated, cast iron wind locks add strength and prevent lateral slat movement.

The counterbalance assembly consists of a spring barrel which serves as a load-carrying beam. It encases the counterbalance mechanism and provides the axis around which the curtain coils. (Deflection is limited to 0.033" per lineal foot of span.)

Key Product Features

  • Max Width: 12’
  • Max Height: 12’
  • Max Steel Gauge = 26
  • Steel construction
  • 2” flat slats
  • Wind load ±20 psf standard
  • Double-angle bottom bar reinforces the lower edge of the curtain

Slat Profile

slat profile
No. 17

Options & Accessories

  • Vinyl weatherseal for curtain, lintel brush and rubber hood baffle
  • Manual chain hoist
  • Motor operator
  • Pneumatic or electric sensing edge
  • Wind Locks
  • End covers and fascia

Color Options

RAL Powder Coat

Wayne Dalton also offers approximately 200 powder coat options to complement the exterior colors of a building.

colors
