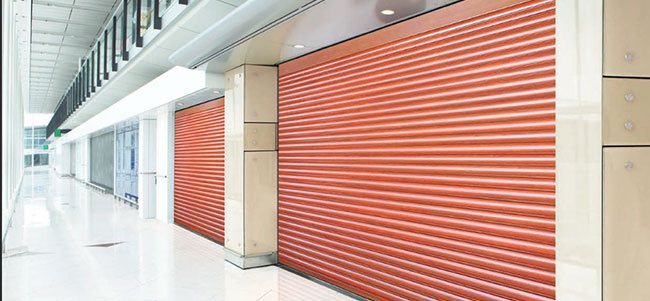

Security Shutter Model 523

Attractive security shutter for areas where aesthetics are a valued premium

Wayne Dalton’s Model 523 is an attractive security shutter for areas where aesthetics are a valued premium. This shutter has a compact design and comes pre-assembled for easy installation in areas with low headroom and side room requirements. Model 523 is perfect for pharmacies, hospitals, offices, schools and other retail facilities.
Contact us about this product

The design of Model 523 allows for visibility and air flow with perforation and fenestration options, ideal for retail applications. Made with extruded aluminum, the curtain has interlocking slats constructed of .05” aluminum and comes pre-assembled for easy installation. Its compact design accommodates minimal headroom requirements. To add to the aesthetics of any facility, Model 523 comes available in four standard powder coat colors and six wood grain finishes.

Key Product Features

  • Max Width: 20'
  • Max Height: 14’
  • .05" extruded aluminum slats
  • Compact aluminum bottom bar with vinyl bulb seal

Options & Accessories

  • Operation: manual lift (standard), interior crank or tube motor with crank for emergency egress manual override
  • Locks: Slide bolts (standard); padlockable slide bolts, cylinder lock, or interlock (for use with motorized units)
  • Bottom bar step angle attachment

Curtain Options

  • Solid (standard)
  • Perforation
  • Fenestration

Standard Powder Coat Colors





Wood Grain Powder Coat Colors

Barrel Oak

Light Maple

Natural Pine

Rustic Alder

Winchester Cherry

*Silver and bronze powder coat made to match anodized aluminum style.

RAL Powder Coat

Wayne Dalton also offers approximately 200 powder coat options to complement the exterior colors of a building.


Additional Information
