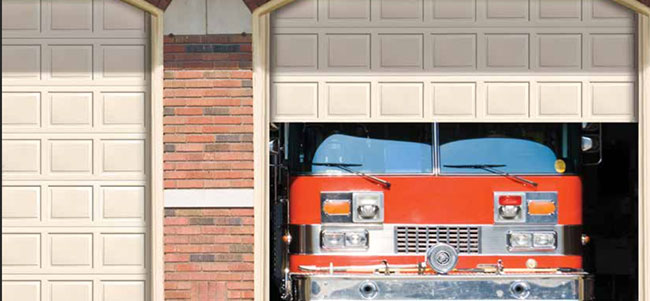

Thermomark™ 5150 & 5200

Strength, Insulation and Aesthetic Appeal

ThermoMark™ Models 5150 and 5200 are the ideal choice if you’re looking for a commercial door that has a combination of strength and insulation but also looks great on most buildings. Foamed-in-place polyurethane insulation helps improve the thermal efficiency of a building a minimum, offering year-round comfort while also helping to provide quieter door operation.
Contact us about this product
DOWNLOAD PRODUCT BROCHURE

ThermoMark™ Models 5150 and 5200 are manufactured using our patented, continuous foamed-in-place technology, in which the polyurethane core is securely bonded to hot-dipped galvanized inner and outer skins. This process gives these doors outstanding thermal, strength, and bonding characteristics while creating a door that is significantly more efficient than conventional insulated steel doors. A designed-in joint seal also helps save energy by preventing air filtration.

Features such as the 18-gauge steel end caps give these doors increased rigidity, while the factory finished interior and exterior hot-dipped, galvanized skins make installation easier, add life to the door and provide greater durability. ThermoMark™ 5150 and 5200 also feature hardware plates at all fastener points to add durability and extend the life of the door.

These doors are offered in a wide array of colors and panel designs that give these doors the beauty and appeal of a residential door but meet the size and strength requirements needed for a commercial or industrial application.

Key Product Features

  • Max Width: 20’2” (5150) and 26'2" (5200)
  • Max Height: 20’1”
  • 27-gauge exterior steel
  • Polyurethane insulation, R-value*=12.12 (5150) and 16.22 (5200)
  • 1-3/8” Section Thickness (5150) and 1-7/8" (5200)
  • Variety of colors and two bi-directional wood grain finishes (5150)

*Wayne Dalton uses a calculated door section R-value for insulated doors.

IECC® Compliant

The ThermoMark™ 5150 and 5200 meet IECC® requirements for maximum U-factor of operable fenestrations (2015 Section C402.4) with a 3rd party certified tested value of less than 0.37. ThermoMark™ 5150 and 5200 also meets the ASHRAE 90.1 and IECC® requirement for maximum air leakage for fenestration assemblies (2015 Section C402.5.2 Garage doors) with a 3rd party certified tested value of less than 0.40.

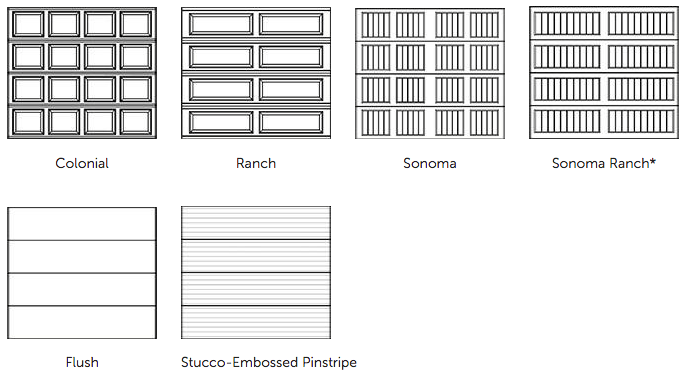

Panel Options

Colonial Window Options

Ranch Window Options

Sonoma Window Options

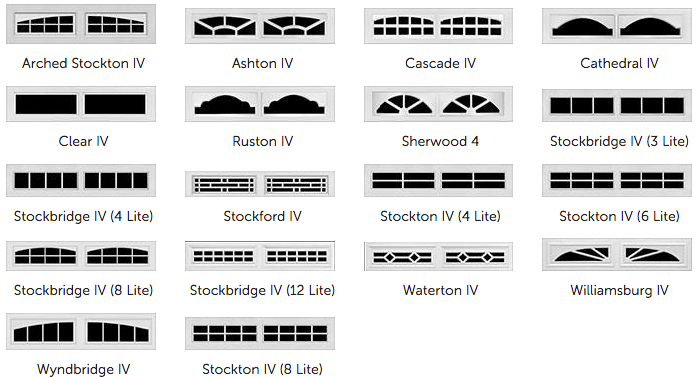

Sonoma Ranch Window Options

Stucco-Embossed Pinstripe and Flush Window Options

Double Car Window

Window Options

Not all windows available on all door sizes.

Options & Accessories

  • Jamb seal
  • High cycle springs (25k, 50k, 100k)
  • 3” track
  • Chain hoist operation
  • Motor operation
  • Broken cable devices
  • Sensing edges
  • Photo eyes
  • Special track designs
  • Mullions

Wind Safe logo

Impact Rated logo

*Static and Impact Wind Load designs are certified by the state of Florida (FBC), Miami Dade (NOA), and the Texas Department of Insurance (TDI), and the designs are compliant with the 2015 IBC.

Color Options

Model 5150 Sonoma and Sonoma Ranch panel only

  • Standard Paint options are available for Colonial, Ranch, Sonoma, Flush
  • Stucco finishes are only available on the Stucco-Embossed Pinstripe panel and Model 5200.

Custom Color

These models are available with the TruChoice™ Color System, Wayne Dalton’s custom painting process that offers more than 6,000+ colors.

true choice colors

Online color swatches are only digital reproductions of actual standards and will vary in appearance due to differences in monitor and video card output. These digital representations should not be used to finalize color selection(s).

Standard Paint Options (Colonial, Ranch, Sonoma, Flush)

white door panel
White
almond door panel
Almond
taupe door panel
Taupe
brown door panel
Brown
black door panel
Black




Custom Paint Colors Available

Garage Door Painting

This commercial door model is available with the TruChoice™ Color System, Wayne Dalton’s custom painting process that offers more than 6,000+ colors.





Textured Wood Grain Finishes (Sonoma)

door panel
Golden Oak
door panel
Walnut




Stucco Embossed Pinstripe Finishes

white door panel
White
almond door panel
Almond
taupe door panel
Taupe
brown door panel
Brown
black door panel
Black


Always contact your local dealer to get an actual sample before purchase.

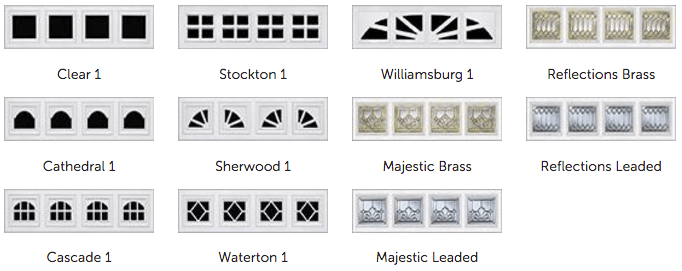

Colonial Window Options

commercial door window
Clear I
commercial door window
Stockton I
commercial door window
Williamburg I
commercial door window
Reflections Brass
commercial door window
Cathedral I
commercial door window
Sherwood I
commercial door window
Majestic Brass
commercial door window
Reflections Leaded
commercial door window
Cascade I
commercial door window
Waterton I
commercial door window
Majestic Leaded

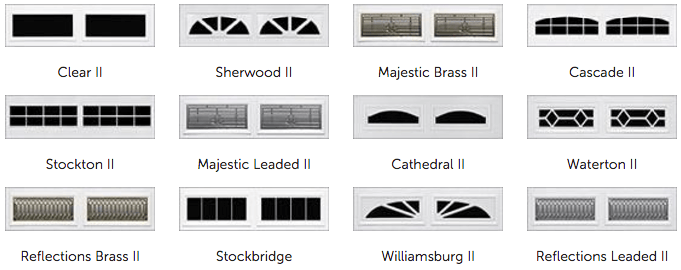

Ranch Window Options

commercial door window
Clear II
commercial door window
Sherwood II
commercial door window
Majestic Brass II
commercial door window
Cascade II
commercial door window
Stockton II
commercial door window
Majestic Leaded II
commercial door window
Cathedral II
commercial door window
Waterton II
commercial door window
Relections Brass II
commercial door window
Stockbridge
commercial door window
Williamsburg II
commercial door window
Reflections Leaded II


Sonoma

commercial door window
Clear I
commercial door window
Cascade III
commercial door window
Stockbridge
commercial door window
Clear III
commercial door window
Stockton I
commercial door window
Waterton I
commercial door window
Cathedral I
commercial door window
Stockton III
commercial door window
Waterton III
commercial door window
Cascade I
commercial door window
Arched Stockton

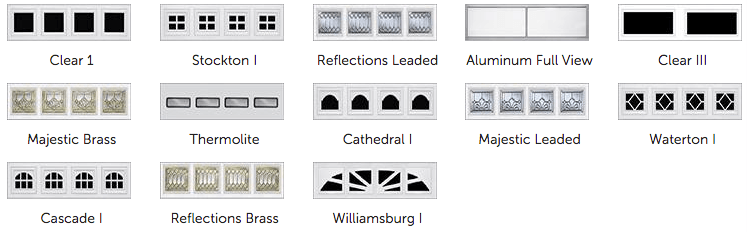

FLUSH

commercial door window
Clear I
commercial door window
Stockton I
commercial door window
Reflections Leaded
commercial door window
Aluminum Full View
commercial door window
Clear III
commercial door window
Majestic Brass
commercial door window
Thermolite
commercial door window
Cathedral I
commercial door window
Majestic Leaded
commercial door window
Waterton I
commercial door window
Cascade I
commercial door window
Reflections Brass
commercial door window
Williamsburg 1


*Not all windows available on all door sizes. See dealer for details.

The ThermoMark 5150 is designed for easy installation, rugged durability and longer life. Features such as the 18-gauge steel end caps give the ThermoMark 5150 increased rigidity, while the factory finished interior and exterior hot-dipped, galvanized skins make installation easier, add life to the door and provide greater durability. The ThermoMark 5150 also features hardware plates at all fastener points to add durability and extend the life of the door.

*Wayne Dalton uses a calculated door section R-Value for insulated doors.
