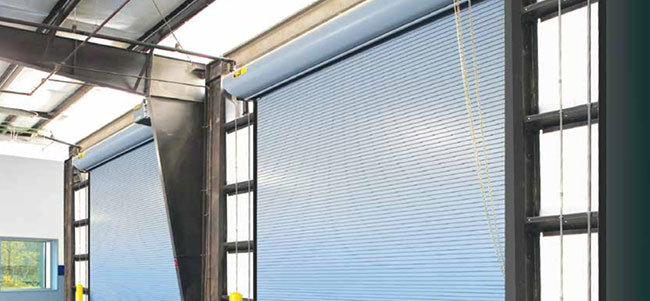

Thermotite™ Model 800C

Insulated Rolling Doors Improve Thermal Efficiency

ThermoTite® 800C Rolling Service Door is designed to meet the tough requirements of virtually any commercial or industrial application, with the added advantage of energy efficiency.
Contact us about this product

The ThermoTite® 800C offers flexibility in substrate materials with choices of galvanized or primed steel, stainless steel or aluminum. This door is designed to withstand wind loads of up to ±20 psf standard, with optional wind load ratings of up to ±55 psf.

These insulated rolling service doors are composed of flat slats that provide a natural watershed, helping to reduce corrosion. Foamed-in-place polyurethane insulation with an R-value* of 7.7 fills the slat to enhance a building’s thermal efficiency. The slats are designed with free-acting interlocking joints that permit easy articulation when the door coils.

Model 800C features a strong double-angle bottom bar designed for easy installation and does not require fasteners in the guide openings, so the bottom bar does not interfere with door operation.

The counterbalance assembly consists of a spring barrel which serves as load-carrying beam. It encases the counterbalance mechanism and provides the axis around which the curtain coils. (Deflection is limited to 0.033" per lineal foot of span.)

*Wayne Dalton uses a calculated door section R-value for our insulated doors.

Key Product Features

  • Max Width: 42’*
  • Max Height: 30’*
  • Max Steel Gauge = 18
  • Steel, aluminum or stainless steel construction
  • Wind load ±20 psf standard; options up to ±55 psf
  • R-Value** = 7.7; U-factor = 0.13

*Larger sizes may be available.
Consult factory for more information. 800-764-1457

**Wayne Dalton uses a calculated door section R-value for our insulated doors.

Slat Profile

slat profile
No. 34

Common Applications

  • Warehouse and Industrial spaces
  • Manufacturing facilities
  • Food and Beverage facilities

Options & Accessories

  • Vision slat
  • Safety edges
  • Drop stop device
  • Exhaust ports
  • Sloping bottom bars
  • Cable reels
  • Mullions
  • Stainless steel or aluminum finish
  • 18- and 20-gauge front slats

IECC Air Infiltration Option

  • Guide cover and cap
  • Dual brush guide seal
  • Lintel seal
  • Bottom astragal
ICC ES Listed logo

Operation Options

  • Chain hoist
  • Motor
  • Through wall

Wind Load Options

  • Articulating Windlocks for Operational wind load
  • Options available to meet up to Dade County – Florida Building Commission High Velocity Hurricane Zone (FBC HVHZ)

Color Options

RAL Powder Coat

Wayne Dalton also offers approximately 200 powder coat options to complement the exterior colors of a building.
