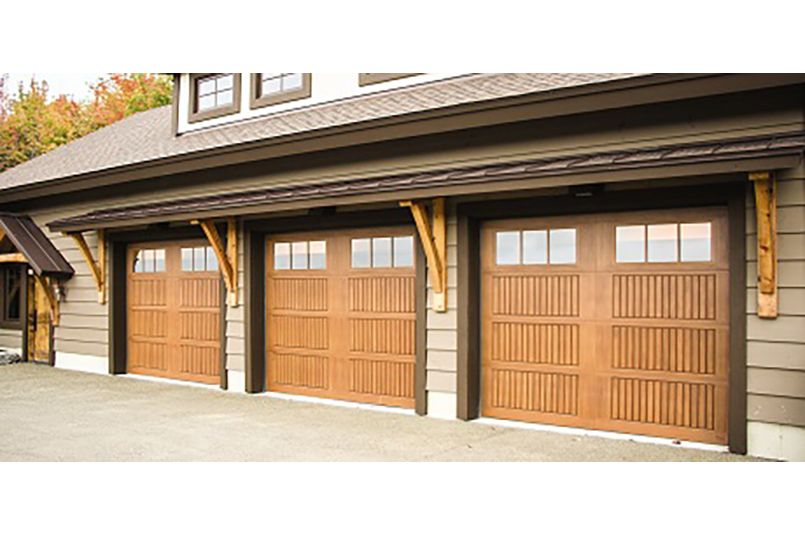

Model 9800 comes with foamed-in-place polyurethane insulation with an R-value* of 7.6, which can improve your home’s thermal efficiency, block street noise and make the door operate more quietly. This door also offers pinch-resistant panels and the TorqueMaster® Plus, our exclusive counterbalance system that safely contains springs inside a steel tube.
*Wayne Dalton uses a calculated door section R-value for our insulated doors.
7 ft. - 3 Sections

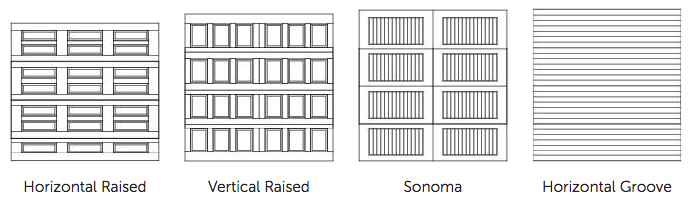

8 ft. - 4 Sections
A distinct wood grain pattern is used for each panel design.
- Cherry - Sonoma panels
- Oak - Horizontal and Vertical Raised panels
- Mahogany - Horizontal V-Groove panels
Horizontal Raised Panel Window Options
Vertical Raised Panel Window Options
V-Groove Panel Window Options
*V-Groove window configurations above is based on a 9’ wide door. 8’ wide doors feature a different window configuration.

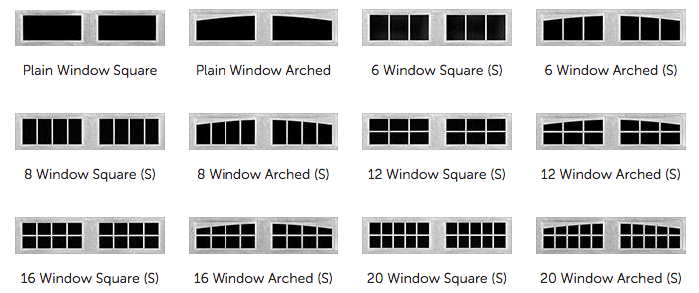

Sonoma Panel Window Options
Window patterns are shown for a typical single-car door. Spacing of windows may change depending on door size. Not all windows are available in all door sizes.
Optional Window Placement
Windows may be arranged vertically or horizontally. Up to 50% of the door can include windows. Windows placed in the bottom section of a door must use DSB 1/8”, or tempered, or insulated glass. Vertical window options can be placed as a special order.
*Obscure glass is not available on the Sonoma panels.
Decorative Hardware Kits
Hammered Knockers Lift Handles
Decorative hardware kits come with four hinges and two pull handles. Double car doors come with two sets of decorative hardware kits. Additional accent pieces are available to match or complement each collection. Pull handle fit in center stile is dependent upon design and size of door.
