Designed to Meet the Needs of the Most Rugged Applications

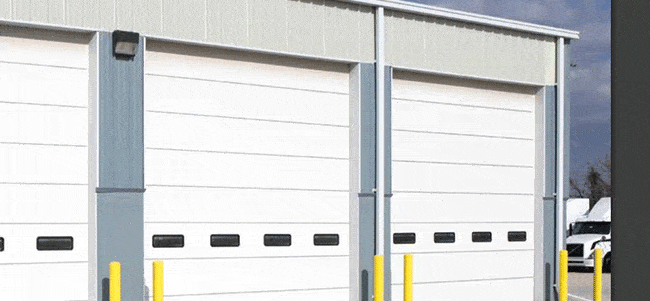

Model 216 is a tough commercial sectional door built to withstand severe weather and harsh conditions while also providing your building with added safety and security.
Contact us about this product
DOWNLOAD PRODUCT BROCHURE

Wayne Dalton’s Model 216 is a tough commercial sectional door built to withstand severe weather and harsh conditions while also providing your building with added safety and security. Whether subjected to severe weather, rough use or security hazards, Model 216 is engineered to perform and stand the test of time.

Model 216’s sections are made of industrial-grade, 16-gauge hot-dipped galvanized steel with heavy-duty vertical stiles for quick and secure hinge installation. For even more strength, we’ve reinforced the bottom section of this door with a flexible bulb shaped vinyl astragal held in place by a continuous roll-formed steel retainer. Optional insulation consists of 1-9/16" expanded polystyrene which provides an R-value* of up to 7.64 and a U-value as low as 0.13.

*Wayne Dalton uses a calculated door section R-value for insulated doors.

Key Product Features

  • Max Width: 28’2”
  • Max Height: 18’1”
  • 16-gauge exterior steel
  • Optional polystyrene insulation, R-value* = 7.64
  • 10,000 cycle standard spring
  • Shiplap joint profile

*Wayne Dalton uses a calculated door section R-value for insulated doors.

Door Construction

door construction
  1. Optional polystyrene insulation sealed between the door panel and embossed steel backing helps cut heating/cooling costs.
  2. Flush profile with shiplap joint

Lite Options

  • Insulated Vision Lites allow for visibility while maintaining security. Full-view sections allow for maximum natural light and visibility.

Options & Accessories

  • Chain hoist operation
  • Motor operation
  • High cycle springs (25k, 50k, 100k)
  • 3” track
  • Solid shafts
  • Perimeter weather seal
  • Broken cable devices
  • Sensing edges
  • Photo eyes
  • Special track designs
  • Mullions

Color Options
