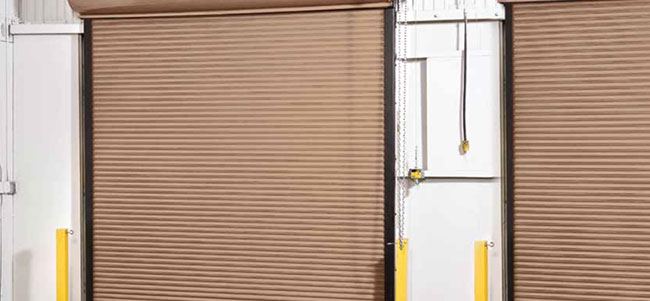

Model 700C

Insulated Fire Doors Provide Protection and Thermal Efficiency

FireStar® Model 700C Rolling Steel Insulated Fire Door provides a practical and innovative solution to safety and fire protection.
Contact us about this product
DOWNLOAD PRODUCT BROCHURE



Our FireStar® Model 700C Rolling Steel Insulated Fire Door provides a practical and innovative solution to safety and fire protection. Model 700C is insulated with a non-combustible mineral wool insulation that has a flame spread and smoke development of 0, further aiding in the protection of the building. FireStar® doors can be drop-tested and reset at any time by anyone, thanks to a standard auto-reset feature and feature a forward-thinking design that outperforms industry standard fire doors in all areas.

The revolutionary FireStar® design uses a patent-pending planetary gear on the drop-out mechanism ensuring years of reliable service and drop-out performance. Factory-tested and approved for a minimum of 20,000 cycles, the FireStar® door can be used and tested on a regular basis without concerns of premature failure. Our fire doors have been tested and approved to meet the requirements of well-known agencies, such as Underwriters Laboratories and Factory Mutual, and conform to NFPA Standard 80.

We incorporate one standardized component design for all FireStar® doors regardless of size, and utilize fewer parts than other models. This helps to ensure more accurate installations and reduces the possibility of potential service calls in the future.



Key Product Features

  • Max Width: 24’
  • Max Height: 24’
  • Max Steel Gauge = 18
  • Wind load ±20 psf standard; options up to ±55 psf
  • Mineral wool insulation, R-value* = 5.0; U-factor = .2
  • UL or FM Rated
  • Patented-pending planetary gear design
  • Conforms to NFPA Standard 80
  • Easy drop-test and floor resettable


*Wayne Dalton uses a calculated door section R-value for our insulated doors.

Slat Profile

slat profile
No. 34

Options & Accessories

  • Vision: FireLites
  • Wind load: options available to meet up to Dade County – Florida Building Commission
  • Wind locks
  • End covers
  • Fascia
  • Fire door release system
  • Horns and strobes
  • Smoke detectors
  • Bottom bar sensing edges

Operator Options

  • Chain hoist
  • Wall crank
  • Awning crank
  • Motor operation
  • Thru-wall operation

Color Options

RAL Powder Coat

Wayne Dalton also offers approximately 200 powder coat options to complement the exterior colors of a building.

colors

Additional Information
